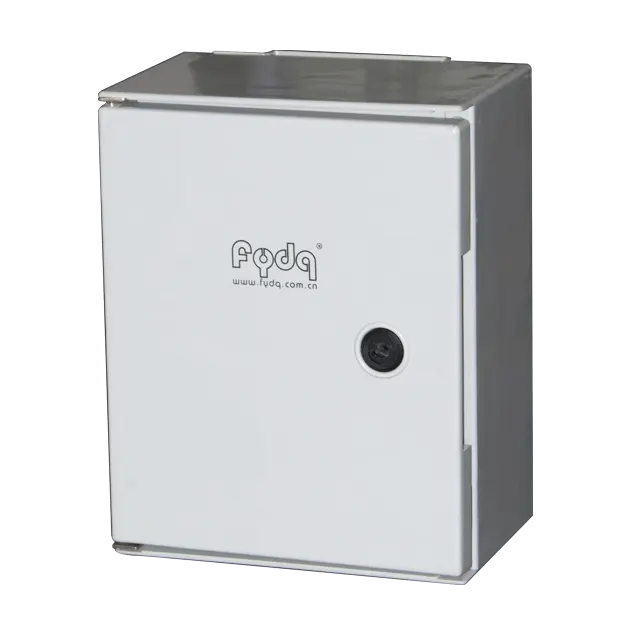

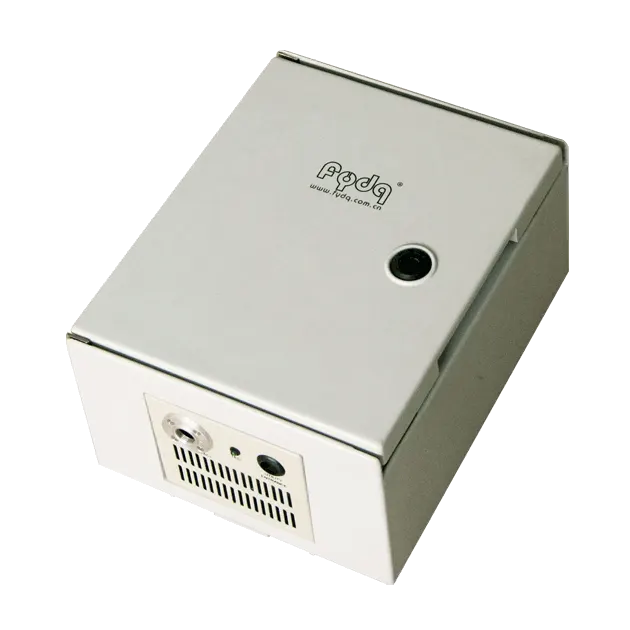

FYGD-CS Series Non-standby Power Supply

FYGD-CS-Non-standby Power Supply
FYGD-CS-Non-standby Power Supply
FYGD-CS-Non-standby Power Supply
  • FYGD-CS-Non-standby Power Supply
  • FYGD-CS-Non-standby Power Supply
  • FYGD-CS-Non-standby Power Supply
Quick Quote

Highlights

  • All-new design outdoor enclosure for all-weather applications
  • Built from composite plastic reinforced with fiber glass
  • Security lock ensures safety of the equipment
  • Constant voltage ferro-resonant transformer
  • Fully regulated, clean and reliable output AC power
  • Input and output protection, lightning surge protection
  • Current limited output and short-circuit protection
  • Automatic restart upon removal of short
  • Field selectable output voltages
  • Pole & wall mount installations
  • Optional Time Delay Relay (TDR)

Specifications

ModelsFYGD-CS60-15A-WFYGD-CS60-15A-LFYGD-CS6090-15A-WFYGD-CS6090-15A-L120
Input
Voltage220VAC120VAC
Voltage Range+/-15%
Frequency50Hz60Hz50Hz60Hz
ProtectionFuse
Power Factor≥0.9(full load)
Output
Voltage60VAC60/90VAC, field-selectable
Regulation+/-5%
WaveformQuasi-square
Current15A
Power900VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥90%
Mechanical
Input Connection(s)Terminal block
Output Connection(s)5/8" female
Enclosure MaterialComposite plastic re-enforced by fiber glass
Dimensions300x240x160mm / 11.8”x9.4”x6.3”
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
